2% 4.0 µm × 4.0 µm SSC @ 1301 nm

Target & SMF parameters

SMF-28 MFD is ≈ 9.2 µm at 1310 nm. The bare 4 µm core guides only a ≈ 4.2 µm mode, so the SSC expands it up to ≈ 9–10 µm to match the fiber. The last field is the mode-field diameter the SSC facet presents to the SMF (the design target).

Analytic Gaussian-overlap estimate for a quick look; the authoritative numbers below are the mode-overlap integral between the true 2-D waveguide/facet mode (from a mode solver) and the SMF-28 field.

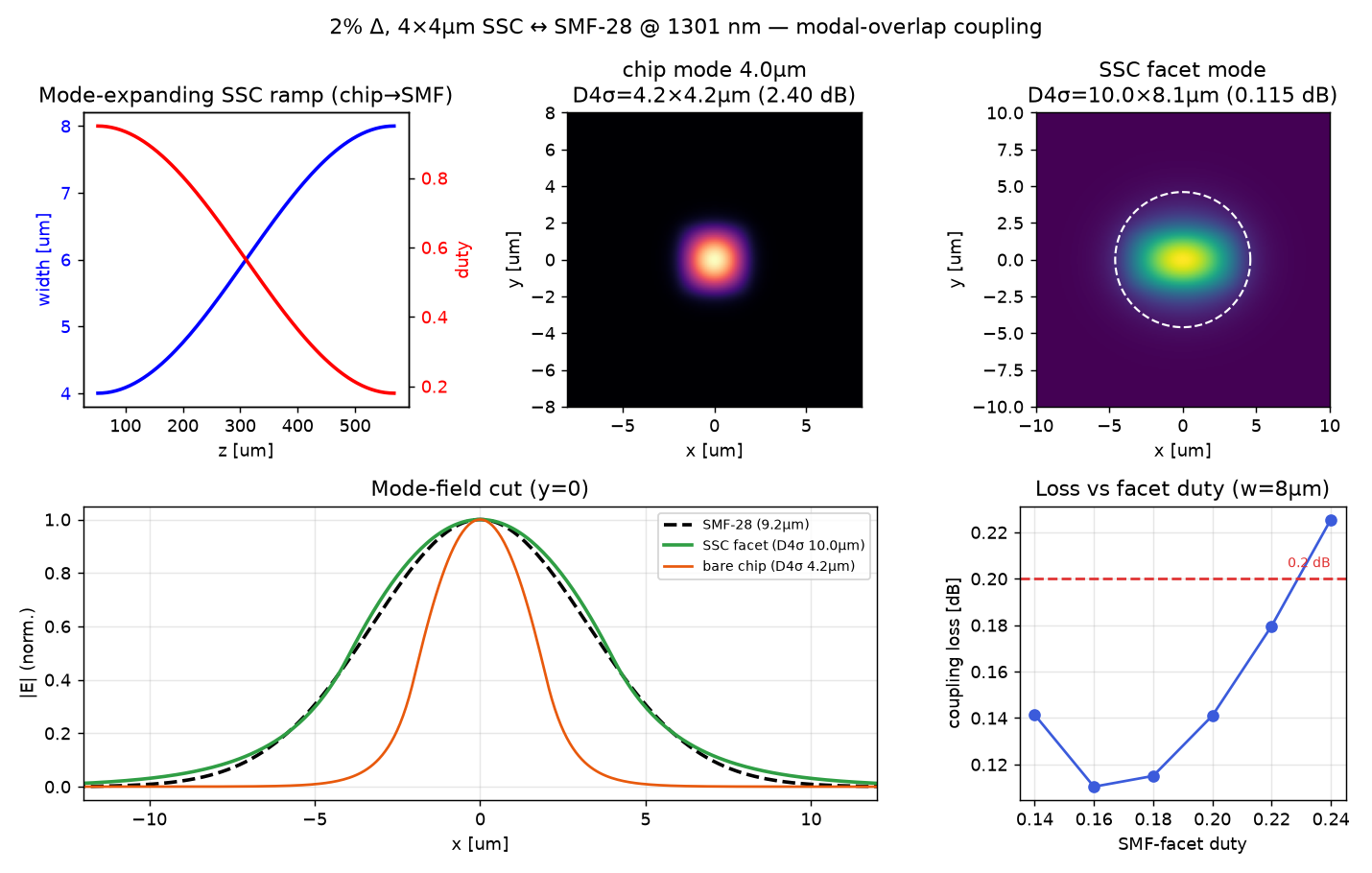

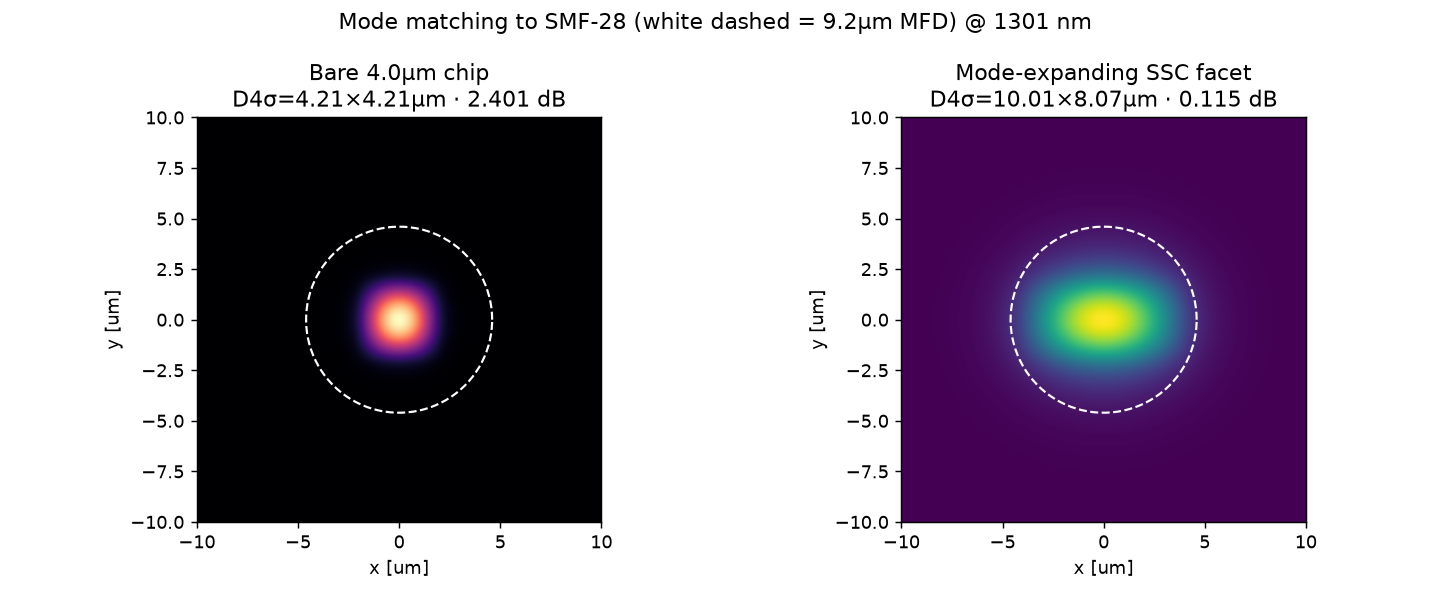

Mode field cross-section — blue: SMF Gaussian, red dashed: bare WG mode, green: expanded SSC-tip mode. Larger overlap with the SMF means lower loss.

• The SMF-28 mode-field diameter is ~9.2 µm at 1310 nm, while a 2% Δ, 4.0×4.0 µm silica waveguide guides a much smaller ≈ 4.2 µm mode — so the bare butt-coupling loss is a large ≈ 2.4 dB.
• A segmented (periodically broken) taper uses sub-/near-wavelength duty modulation to lower the local effective index. Ramping the duty from ≈ 1.0 (solid chip) down to ≈ 0.18 at the facet — while the segment width grows 4 → 8 µm — expands the mode up to ≈ 9–10 µm to match the fiber.
• To reach the fiber size the facet mode must be pushed close to cutoff (weakly guided): its effective index sits only ≈ 0.002 above the SiO₂ cladding. That is what lets a 4 µm-core mode swell to ~10 µm.
• Target: SMF coupling insertion loss < 0.2 dB at 1301 nm — achieved at 0.115 dB.

Butt-coupling loss is the mode-overlap integral between the fiber mode and the waveguide (facet) mode — the robust, standard definition:

The 2-D waveguide mode E_wg (the bare chip mode, or the duty-averaged effective-medium facet mode) is found with an imaginary-distance mode solver on the real index cross-section; E_smf is the SMF-28 field (MFD 9.2 µm). The segmented taper's role is to expand the chip mode to the facet mode adiabatically, so the device coupling loss equals the facet-mode / SMF mismatch.

Note on method. The low-loss facet mode is weakly guided (near cutoff). A "launch a Gaussian, propagate it, overlap the output" scalar-BPM metric is unreliable in that regime: even propagating the exact expanded eigenmode returns a self-overlap of only ~28 % (a paraxial mode-beating artefact), which spuriously inflates the loss to ~0.28 dB. The mode-overlap integral above is free of that artefact, so it is used for the reported numbers.

Chip waveguide 4.0 µm × 4.0 µm solid; the segmented taper ramps the duty 0.95 → 0.18 (cosine) and the segment width 4.0 → 8.0 µm over a gentle ≈ 570 µm length, expanding the mode from 4.2 µm to ≈ 10 µm at the SMF facet.

Expanding the mode to D4σ ≈ 10.0 × 8.1 µm brings it onto the SMF-28 field (9.2 µm), lifting the overlap from 57.5 % (bare) to 97.4 % — a coupling loss of 0.115 dB, below the 0.2 dB target. A facet duty in ≈ 0.16–0.22 keeps the loss under 0.18 dB. Because the low-loss facet mode is weakly guided (n_eff only ≈ 0.002 above the cladding), the design is more sensitive to duty/width fabrication error and to substrate proximity than a strongly-guided mode; a thick cladding and an adiabatic taper are assumed.

Everything needed to reproduce the result above:

• ssc_optimized.gds — mode-expanding SSC mask (130 segments, chip 4.0 µm solid → 8.0 µm / 0.18-duty facet).
• ssc_reference.gds — the bare straight 4.0 µm waveguide (no converter).
• run_modal_ssc_2pct_4um_1301.py — driver: solves the chip & facet modes, computes the SMF-28 mode-overlap coupling loss + duty tolerance, and writes the GDS + figures.
• seg_ssc.py — segmented-SSC geometry generator and effective-medium index field.
• ssc_ga_optimizer.py — platform constants (silica Sellmeier) and the 3D-BPM / mode-solver base.
• ssc_result_summary.png — full result figure.
• ssc_compare.png — mode-matching comparison figure.

Run with python3 run_modal_ssc_2pct_4um_1301.py --out . (needs numpy, gdstk, matplotlib, and bpm3d.py). Coupling loss is the mode-overlap integral between the solver's 2-D waveguide mode and the SMF-28 field; pass --dx 0.07 for a finer convergence check.
