2% 3 µm × 3 µm SSC @ 1550 nm

Target & SMF parameters

SMF-28 MFD is ≈ 10.4 µm at 1550 nm. The bare 3 µm core guides only a ≈ 4.4 µm mode, so the SSC expands it up to ≈ 10 µm to match the fiber. The last field is the mode-field diameter the SSC facet presents to the SMF (the design target).

Analytic Gaussian-overlap estimate for a quick look; the authoritative numbers below are the mode-overlap integral between the true 2-D waveguide/facet mode (from a mode solver) and the SMF-28 field.

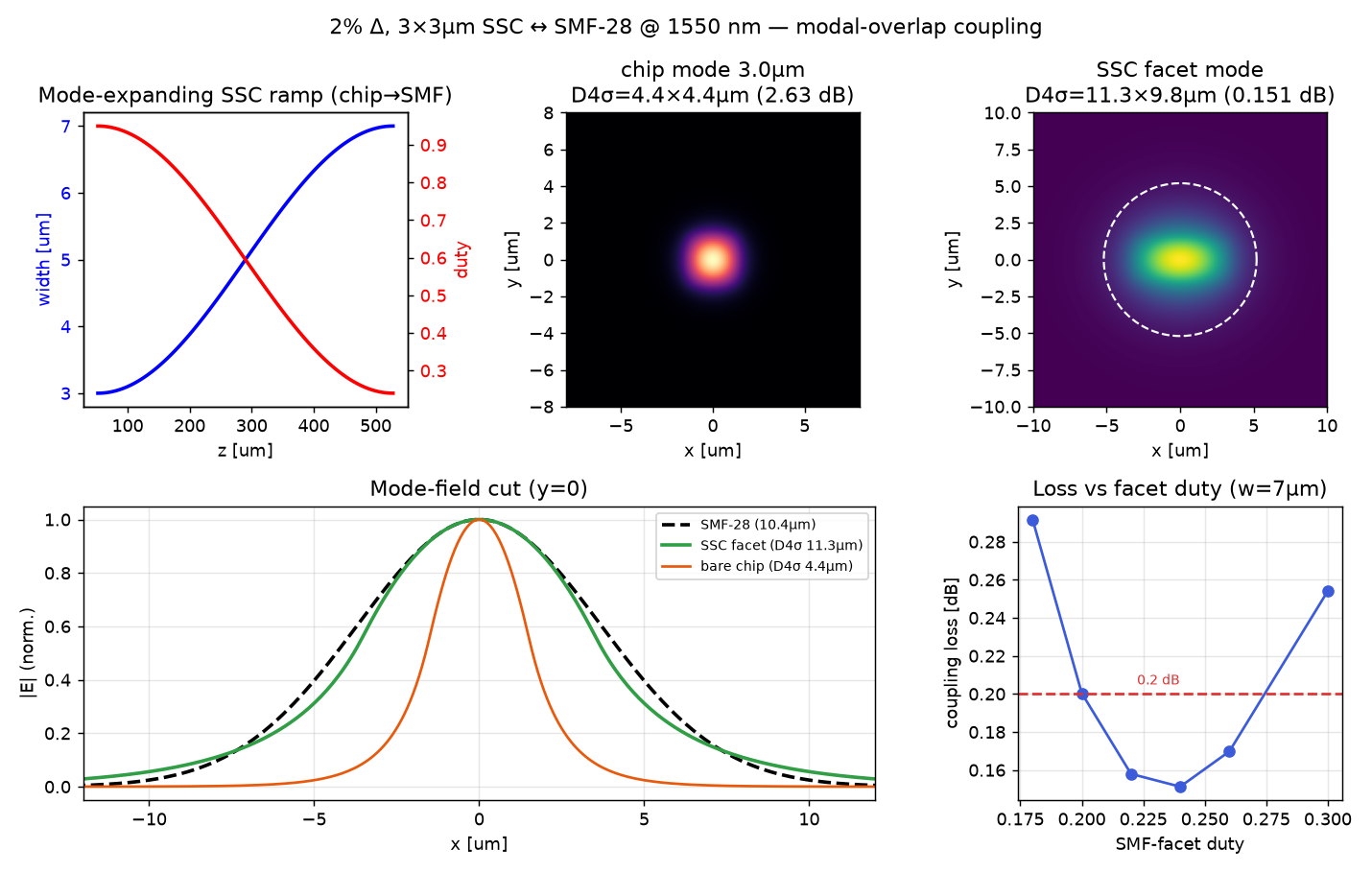

Mode field cross-section — blue: SMF Gaussian, red dashed: bare WG mode, green: expanded SSC-tip mode. Larger overlap with the SMF means lower loss.

• The SMF-28 mode-field diameter is ~10.4 µm at 1550 nm, while a 2% Δ, 3×3 µm GeO₂-silica core guides a much smaller ≈ 4.4 µm mode — so the bare butt-coupling loss is a large ≈ 2.6 dB.
• A segmented (periodically broken) taper uses sub-/near-wavelength duty modulation to lower the local effective index. Ramping the duty from ≈ 1.0 (solid chip) down to ≈ 0.24 at the facet — while the segment width grows 3 → 7 µm — expands the mode up to ≈ 10 µm to match the fiber.
• To reach the fiber size the facet mode must be pushed close to cutoff (weakly guided): its effective index sits only ≈ 0.0014 above the SiO₂ cladding. That is what lets a 3 µm-core mode swell to ~10 µm.
• Vertical bottleneck. The lateral taper widens the mode in x easily, but the fixed 3 µm-thick core only lets the vertical (y) mode grow via the duty-lowering. So the size-matched facet mode is elliptical (≈ 11.3 × 9.8 µm) rather than round like the fiber — the overlap caps at ≈ 96.6 %, i.e. ≈ 0.15 dB. A < 0.1 dB target (which needs > 97.7 % overlap) is not reachable with a lateral segmented SSC on this thin core; it would require a larger/squarer core, a fiber with a smaller mode (e.g. UHNA), or a taper that also expands vertically.

Butt-coupling loss is the mode-overlap integral between the fiber mode and the waveguide (facet) mode — the robust, standard definition:

The 2-D waveguide mode E_wg (the bare chip mode, or the duty-averaged effective-medium facet mode) is found with an imaginary-distance mode solver on the real index cross-section; E_smf is the SMF-28 field (MFD 9.2 µm). The segmented taper's role is to expand the chip mode to the facet mode adiabatically, so the device coupling loss equals the facet-mode / SMF mismatch.

Note on method. The low-loss facet mode is weakly guided (near cutoff). A "launch a Gaussian, propagate it, overlap the output" scalar-BPM metric is unreliable in that regime: even propagating the exact expanded eigenmode returns a self-overlap far below 100 % (a paraxial mode-beating artefact), which spuriously inflates the loss. The mode-overlap integral above is free of that artefact, so it is used for the reported numbers.

Chip waveguide 3 µm × 3 µm solid; the segmented taper ramps the duty 0.95 → 0.24 (cosine) and the segment width 3 → 7 µm over a gentle ≈ 530 µm length, expanding the mode from 4.4 µm to ≈ 11 µm at the SMF facet. A full facet-width / duty scan puts the minimum coupling loss at ≈ 0.15 dB.

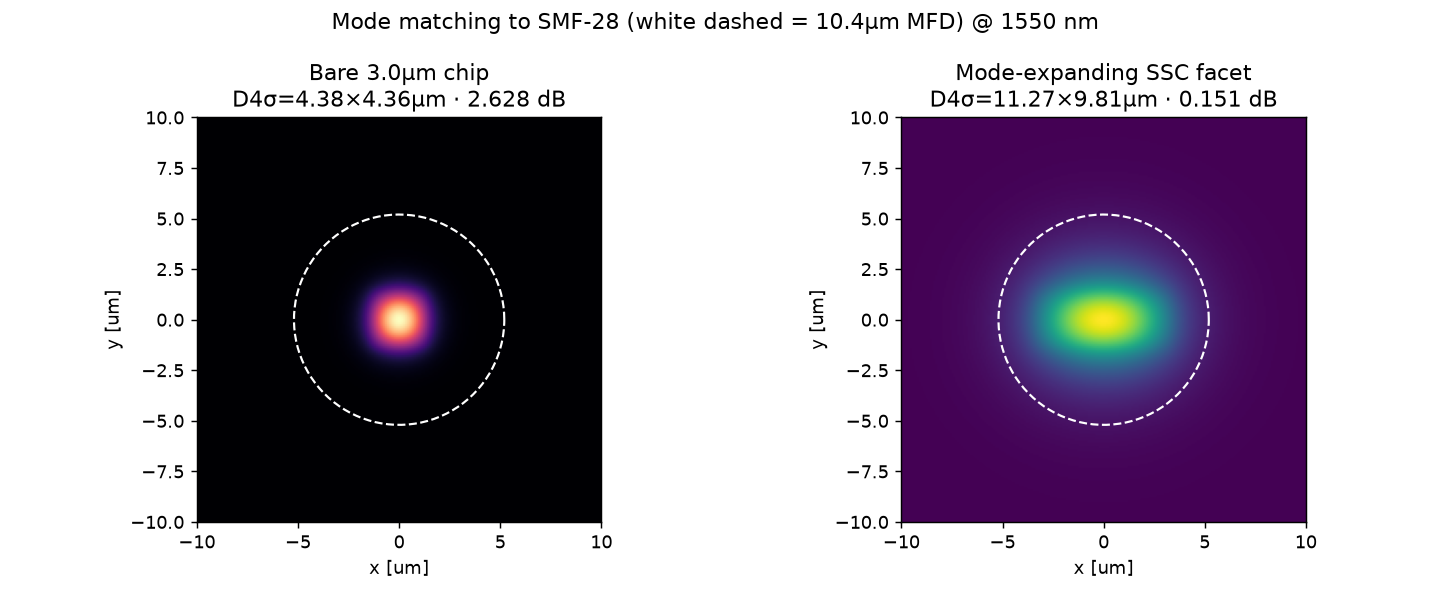

Expanding the mode to D4σ ≈ 11.3 × 9.8 µm lifts the overlap from 54.6 % (bare) to 96.6 % — a coupling loss of 0.151 dB. A facet duty in ≈ 0.22–0.26 keeps the loss under 0.17 dB. The ≈ 3.4 % residual is not radiation but a mode-shape mismatch: the expanded facet mode is elliptical (D4x/D4y ≈ 1.15) and not perfectly Gaussian, so it cannot fully overlap the round SMF-28 field. That is the fundamental reason a < 0.1 dB coupling is not achievable for a 3 µm-thin core to SMF-28 with a lateral segmented SSC. Reaching < 0.1 dB would need one of: a larger/squarer core (a rounder, better-confined mode), coupling to a small-mode fiber such as UHNA (MFD ≈ 4 µm) via a short UHNA→SMF pigtail, or a converter that also expands the mode vertically.

Everything needed to reproduce the result above:

• ssc_optimized.gds — mode-expanding SSC mask (120 segments, chip 3 µm solid → 7.0 µm / 0.24-duty facet).
• ssc_reference.gds — the bare straight 3 µm waveguide (no converter).
• run_modal_ssc_2pct_3um_1550.py — driver: solves the chip & facet modes, computes the SMF-28 mode-overlap coupling loss + duty tolerance, and writes the GDS + figures.
• seg_ssc.py — segmented-SSC geometry generator and effective-medium index field.
• ssc_ga_optimizer.py — platform constants (silica Sellmeier) and the 3D-BPM / mode-solver base.
• ssc_result_summary.png — full result figure.
• ssc_compare.png — mode-matching comparison figure.

Run with python3 run_modal_ssc_2pct_3um_1550.py --out . (needs numpy, gdstk, matplotlib, and bpm3d.py). Coupling loss is the mode-overlap integral between the solver's 2-D waveguide mode and the SMF-28 field; pass --dx 0.07 for a finer convergence check.
